DC5V S Shape Addressable Digital ZigZag RGBW/RGB LED Strip
Home > Products > Flexible LED Strip > Digital LED Strip > DC5V S Shape Addressable Digital ZigZag RGBW/RGB LED Strip

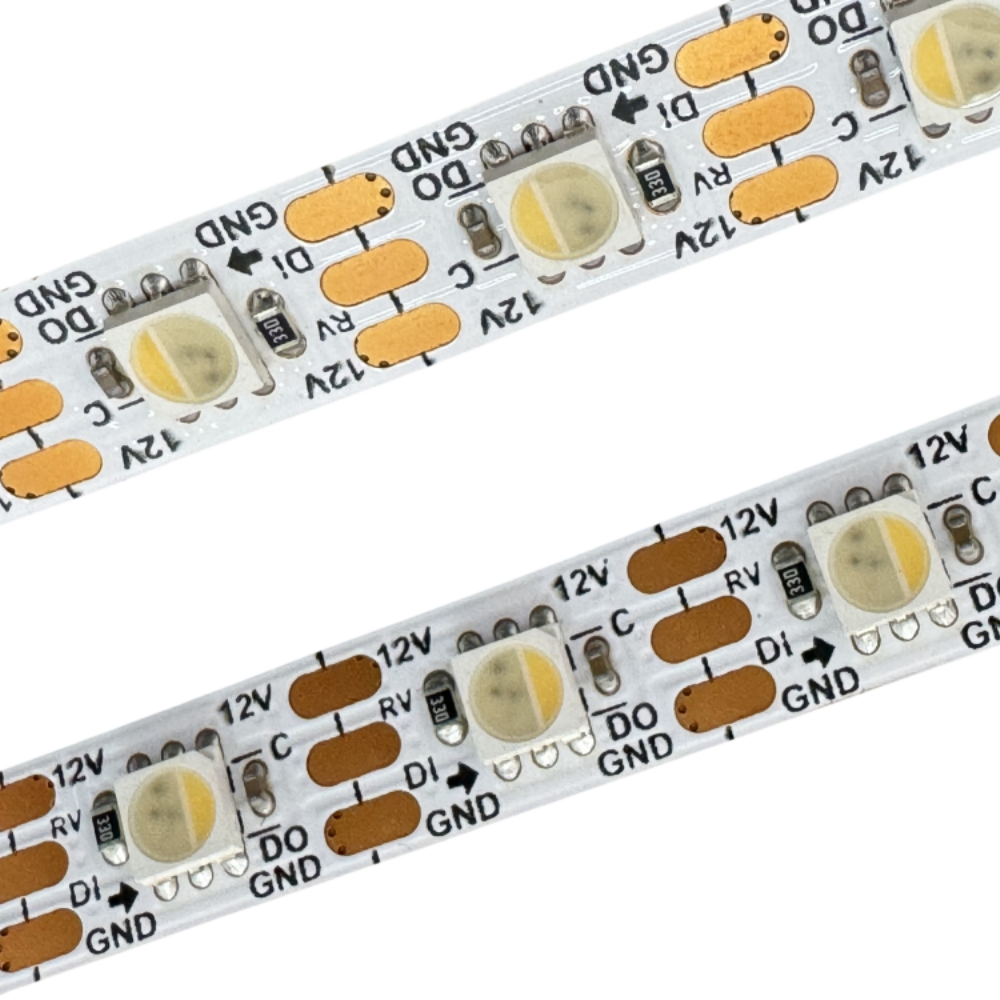

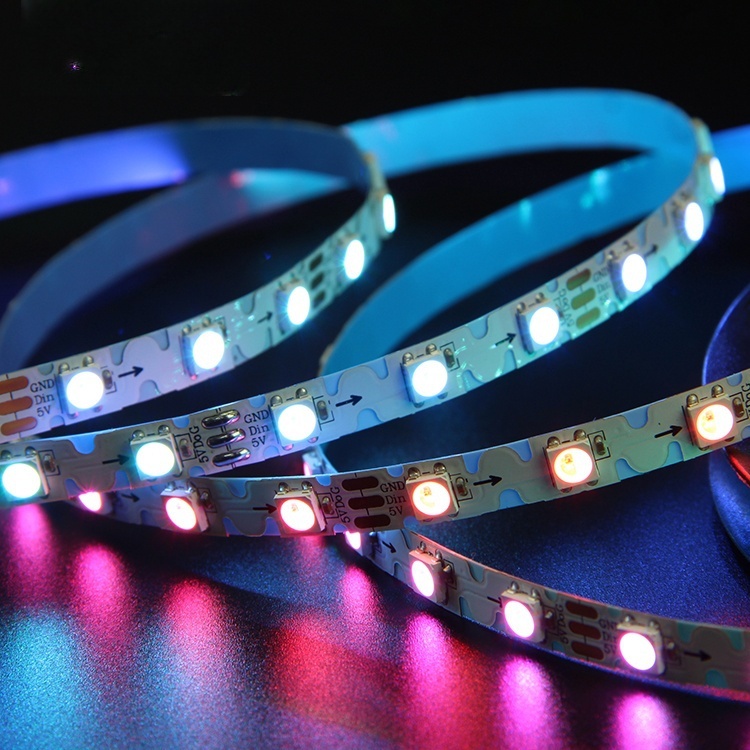

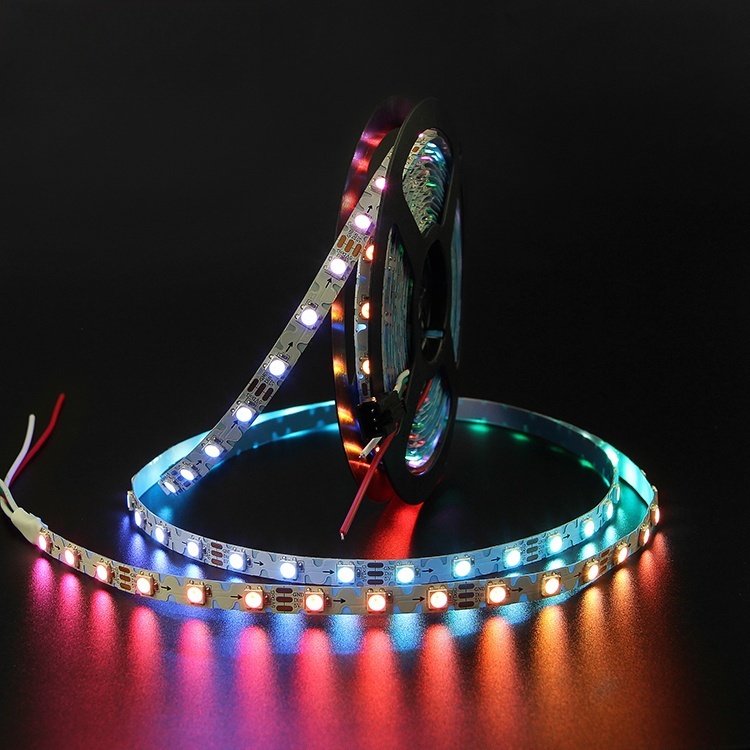

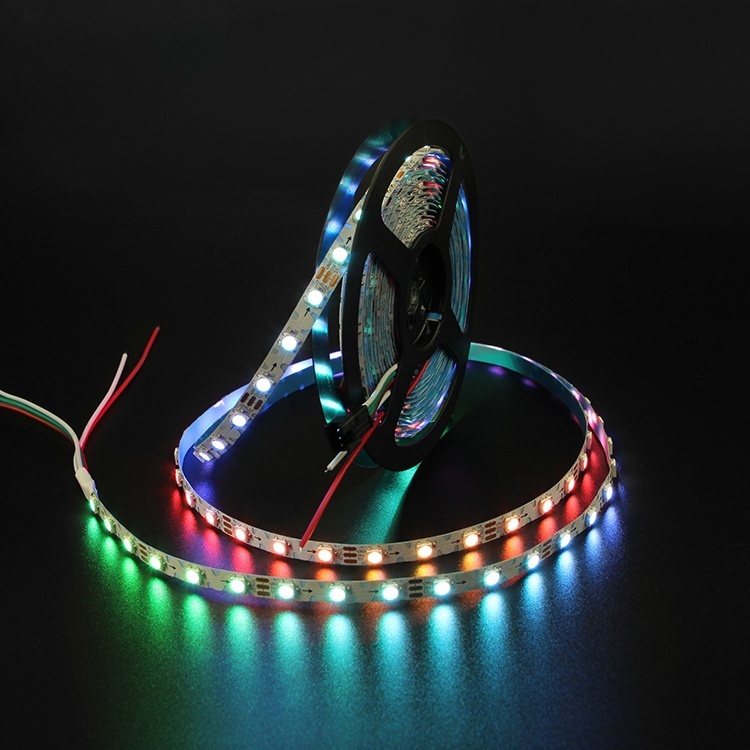

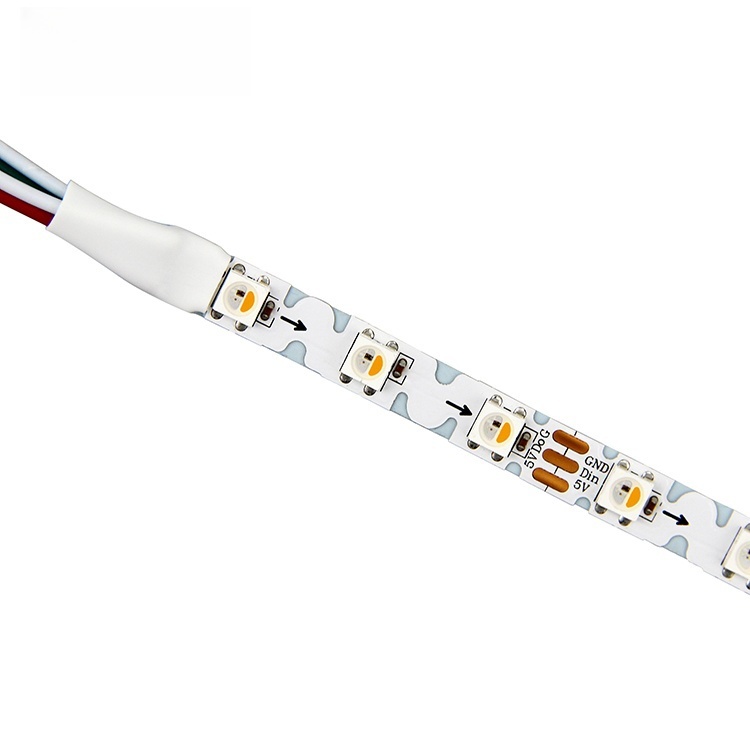

S shape(zigzag) addressable flex led strip
SMD5050 RGB/RGBW 60LEDs/m, 5m in a reel, and 3LEDs per section (Cut-able)
The IC is SK6812, with addressable individually control
The biggest advantage is the S shape, which can be bend at any Angle
Only available in IP20 non-waterproof version
Product Description
Product Parameter
| Product NO | F8B60LSK6812RGBW5V | F8B60LSK6812RGB5V |
| Voltage | DC5V | DC5V |
| LED type | SMD5050 RGB | SMD5050 RGBW |
| Wattage | 14.4W/M | 19.2W/M |
| LEDs/m | 60LEDs/m | 60LEDs/m |
| Cutting length | 3LEDs/50mm | 3LEDs/50mm |
| Dimension | 5000*8mm | 5000*8mm |
| Protocol | SPI - SK6812 | SPI - SK6812 |
| Pixels/m | 60Pixels/m | 60Pixels/ m |
| Materiral | FPC | FPC |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
